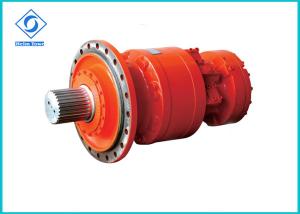

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility

Name: Low Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility
Brand: Helm Tower
Price: 1 USD

Wholesale Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility from china suppliers

Brand Name : Helm Tower

Model Number : MS83

Certification : ISO 9001

Place of Origin : Ningbo

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300 units per month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Wooden Case

Type : piston motor

Color : customized

Speed range : 0-65 r/min

Torque range : 21700-32550 N. m

Rated pressure : 25MPa

Max pressure : 31.5 MPa

Contact Now

Low - Wear Design Slow Speed Hydraulic Motors High Mounting Flexibility

Features:

MS83 HYDRAULIC PISTON MOTOR
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency

3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,

5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output

Displacement diagram:

Displacement Group	8	0	2
Displacement(ml/r)	6679	8328	10019
Theoretical torque a 10Mpa(N.m)	10620	13242	15930
Rated speed(r/min)	63	50	40
Rated pressure(Mpa)	25	25	25
Rate torque(N.m)	21700	27050	32550
Max pressure(Mpa)	31.5	31.5	31.5
Max torque(N.m)	27050	33750	40600
Speed range(r/min)	0-65	0-52	0-43
Max power(kW)	standard displacement is 220kw,variable displacement priority rotation 135kw

Applications:

Construction Machinery

Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment

Mining Machinery

Heavy duty handling car,coal mine drill

Marine Machinery

Marine Deck Crane, Gantry Crane Equipment.

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility

MS83 Connection Dimension

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility

High precision testing facilities and experienced inspectors.

Low - Wear Design Slow Speed MS83 Hydraulic Motors High Mounting Flexibility
